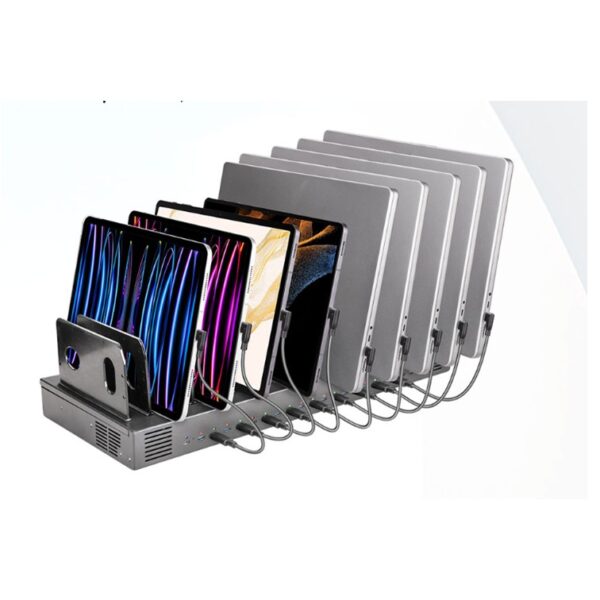

AVL-C20S-T 1000W 20-Port USB-C Charging Dock - Image 1

AVL-C20S-T 1000W 20-Port USB-C Charging Dock

AVL-C20S-P 1000W 20-Port USB-C Charging Station with Organizer Tray
AVL-C20S 1000W 20-Port USB-C Charging Station

• Industrial 1000W 20-port USB-C PD charging dock for high-density charging
• Flexible power allocation: up to 10 devices at 100W, 16 devices at 60W, or 20 devices at 45W
• Supports PD 2.0/3.0 and QC 3.0/QC 4.0+ fast charging protocols
• Six-tier temperature control system with dual-color charging status indicators
• Durable metal housing with 1U 21″ rack-mount design and full safety protections

Categories: ,

Description

1000W 20-Port USB-C Charging Dock

The 1000W 20-Port USB-C Charging Dock is an industrial-grade USB-C PD charging station designed for efficient, high-density charging in professional environments. With a powerful 1000W maximum output and 20 USB-C ports, it supports flexible charging setups—up to 10 devices at 100W for high-demand laptops, up to 16 devices at 60W, or up to 20 devices at 45W for laptops, Chromebooks, tablets, and smartphones.

Built for fast-charging compatibility, it supports USB Power Delivery (PD) 2.0 and 3.0 with multiple voltage profiles (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A), along with Quick Charge 3.0 and Quick Charge 4.0+. The dock features intelligent power adjustment using IPA charging technology to match optimal voltage and current for different devices, helping protect equipment while maximizing charging performance.

For operational reliability, the unit includes a six-tier temperature control system with scientifically distributed heat sources for balanced heat dissipation, plus dual-color indicator lights to clearly show charging status. A durable metal housing and 1U 21" rack-mount design make it ideal for IT rooms, offices, labs, classrooms, event deployments, and device fleets.

Key Features

1000W High-Power Industrial Charging
Supports multi-device charging at scale, with flexible power allocation for laptops, tablets, and phones.

20 USB-C Ports for Simultaneous Charging
Charge multiple devices at once to keep devices ready for use without delays.

Fast-Charge Protocol Compatibility
Supports PD 2.0/3.0 and Quick Charge 3.0/4.0+ with multiple voltage and current options.

Six-Tier Temperature Control System
Balanced heat dissipation design delivers high efficiency with low heat output.

Dual-Color Status Indicator
Clear indicator lights allow easy monitoring of charging status during operation.

Rack-Mountable Metal Housing
Durable enclosure designed for mounting in a 1U 21" rack for clean, professional installations.

Comprehensive Safety Protection
Built-in over current, over voltage, over temperature, and short circuit protection for safe charging.

• Product Type: 20-Port Industrial USB-C PD Charging Dock
• Ports: 20 × USB-C
• Total Max Power: 1000W (Max)
• 20-Ports Power: 45W × 20

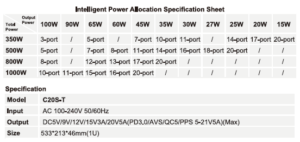

• High-Power Allocation: Up to 10 Devices at 100W / Up to 16 Devices at 60W / Up to 20 Devices at 45W
• Input: AC 100–240V, 12A, 50/60Hz
• USB PD Support: PD 2.0 / PD 3.0
• Quick Charge Support: QC 3.0 / QC 4.0+
• Output (DC): 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 5A (Max)
• Charging Technology: IPA Charging Technology (Intelligent Power Adjustment)
• Temperature Management: Six-Tier Temperature Control System
• Status Indicator: Dual-Color Indicator Light
• Housing: Durable Metal Housing
• Mounting: 1U 21" Rack-Mount Compatible
• Safety Protection: Over Current / Over Voltage / Over Temperature / Short Circuit Protection
• Compatibility: USB-C Laptops / Chromebooks / Tablets / Smartphones / USB-Charged Electronics
