Charging Dock & Stations

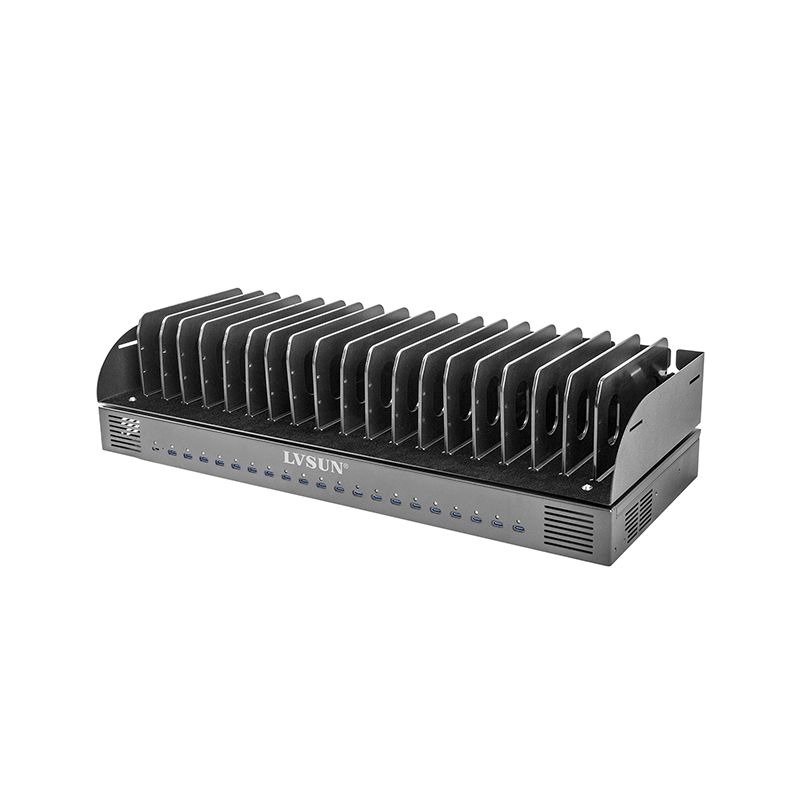

The C20S-P 20-Port USB-C Charging Station with Organizer Tray is designed for efficient multi-device charging and organized storage. With an integrated tray system, it neatly holds up to 20 laptops or tablets while delivering intelligent USB-C charging.

• 20-Port Charging: Charge up to 20 devices simultaneously via USB-C.
• Organizer Tray: Integrated tray keeps devices neatly arranged and accessible.
• Intelligent Charging: Automatically optimizes power output based on individual device requirements.
• LED Status Indicators: Red (charging), green (fully charged), off (no device connected).
• App Control: Manage and monitor charging via innovatecharger app (multi-language support).
• Energy Saving Mode: Supports scheduled charging to reduce electricity usage.
• Safety Protection: Includes over-temperature, over-voltage, over-current, and short circuit protection.

Ideal for offices, classrooms, and shared environments, this charging station provides a reliable and organized solution for powering multiple devices efficiently.

Product Name:
20-Port USB-C Charging Station with Organizer Tray

Model:
C20S-P

Input:
AC 100–240V 50/60Hz

Output:
DC5V / 9V / 12V / 15V / 20V 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
1000W (Max)

Ports:
20 x USB-C

Size:
533 × 213 × 66 mm

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)
30W (11-port)
25W (14-port)
20W (17-port)
15W (20-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (11-port)
35W (14-port)
30W (16-port)
27W (18-port)
25W (20-port)

800W:
100W (8-port)
65W (12-port)
60W (13-port)
45W (17-port)
35W (20-port)

1000W:
100W (10-port)
90W (11-port)
65W (15-port)
60W (16-port)
45W (20-port)

Features:
LED Charging Indicators
Organizer Tray Design
App Control (innovatecharger)
Timer Switch
Energy Saving Mode
Multi-Protection Safety System

Compatibility:
Laptops, Tablets, Smartphones, VR Devices, USB-C Devices

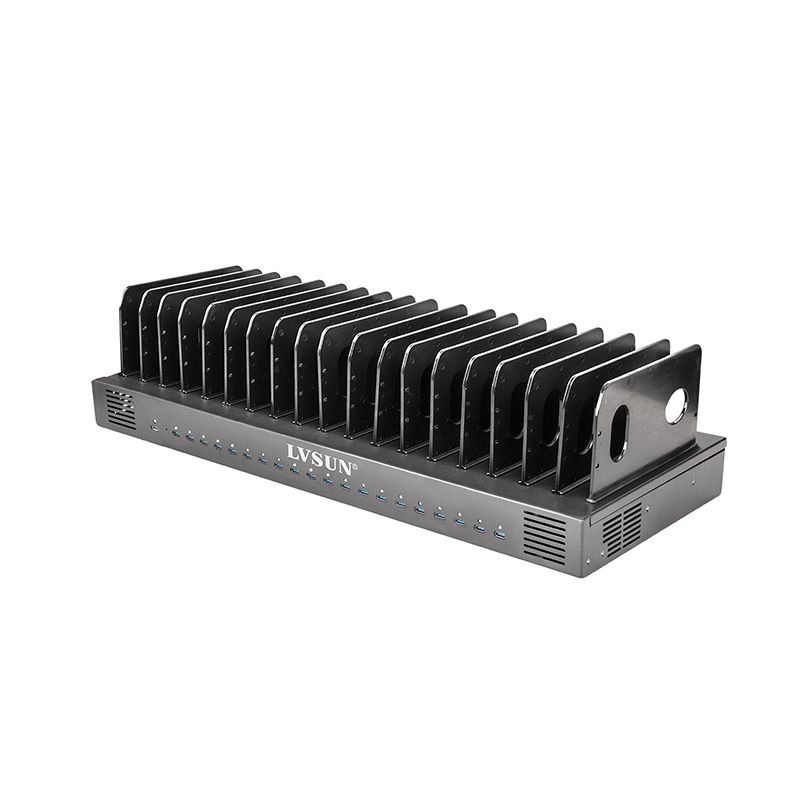

The C20S-T 20-Port USB-C Charging Dock is a high-performance charging solution designed to power multiple devices simultaneously. With a total output of up to 1000W, it supports efficient charging for laptops, Chromebooks, tablets, and smartphones in a compact dock format.

• 20-Port Charging: Charge up to 20 devices simultaneously.
• High Power Output: Supports up to 1000W total output with flexible power distribution.
• Intelligent Power Allocation (IPA): Automatically adjusts voltage and current based on device requirements.
• GaN Technology: Uses sixth-generation GaN technology for efficient power delivery.
• Temperature Control System: Six-tier temperature control for balanced heat management.
• LED Indicators: Dual-color indicators display charging status clearly.
• Cooling System: Built-in fan and heat sink design for improved heat dissipation.
• Safety Protection: Includes over-current, over-voltage, over-temperature, and short circuit protection.

Suitable for offices, classrooms, and industrial environments, this charging dock provides reliable, high-capacity power delivery with intelligent control and stable performance.

Product Name:
20-Port USB-C Charging Dock

Model:
C20S-T

Input:
AC 100–240V 50/60Hz

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD2.0 / PD3.0 / QC3.0 / QC4.0+) (Max)

Total Power:
1000W (Max)

Ports:
20 x USB-C

Size:
533 × 213 × 46 mm (1U)

Mounting:
1U Rack Mount Compatible

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)
30W (11-port)
25W (14-port)
20W (17-port)
15W (20-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (11-port)
35W (14-port)
30W (16-port)
27W (18-port)
25W (20-port)

800W:
100W (8-port)
65W (12-port)
60W (13-port)
45W (17-port)
35W (20-port)

1000W:
100W (10-port)
90W (11-port)
65W (15-port)
60W (16-port)
45W (20-port)

Features:
Intelligent Power Allocation (IPA)
GaN Technology (6th Generation)
Six-Tier Temperature Control System
LED Charging Indicators
Built-in Cooling Fan
Heat Sink Design
Multi-Protection Safety System

Compatibility:
Laptops, Chromebooks, Tablets, Smartphones, USB-C Devices

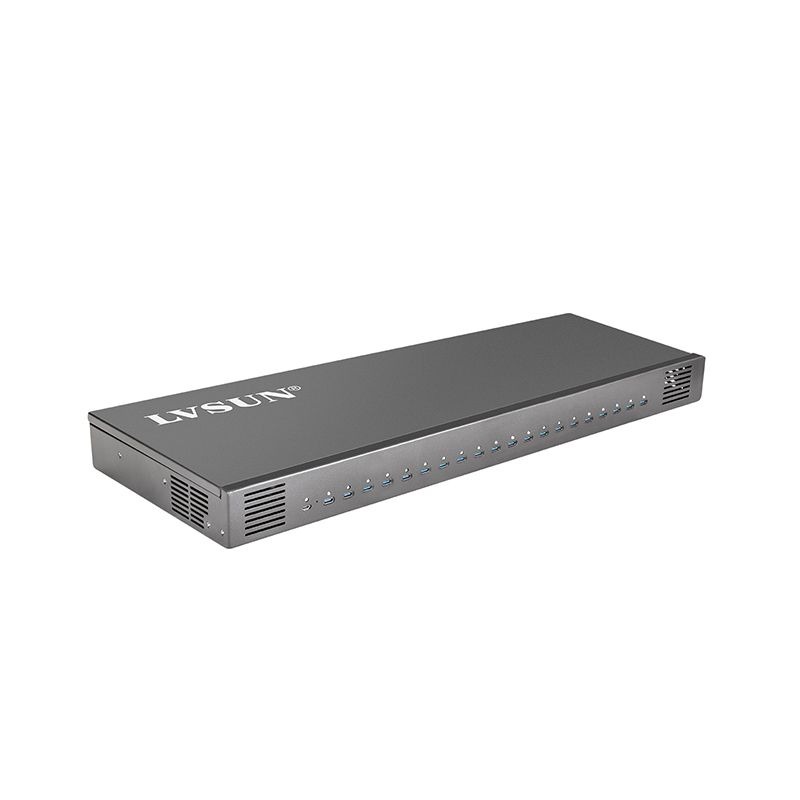

The C20S 20-Port USB-C Charging Station is a rack-mountable charging solution designed to accommodate up to 20 laptop devices. With 20 USB-C charging ports and intelligent power allocation, it provides efficient high-capacity charging for classrooms, offices, retail environments, and other shared spaces.

• 20-Port Charging: Charges up to 20 devices simultaneously through USB-C ports.
• 1000W Total Power Output: Provides high-capacity charging for multiple connected devices.
• Intelligent Power Allocation: Automatically distributes power for efficient charging performance.
• Safety Protection: Includes over current, over voltage, over heating, and short circuit protection.
• Automatic Temperature Control: Supports automatic fan activation or deactivation based on temperature settings.
• Power Saving Function: Equipped with a power switch to conserve energy when not in use.
• LED Status Indicators: Built-in LED indicators show power and charging status.
• Rack-Mountable Housing: Durable metal housing designed for 21″ rack mounting.

Designed for reliable multi-device charging, the C20S provides an efficient solution for powering laptops, tablets, and smartphones in education, office, and retail environments.

Product Name:
20-Port USB-C Charging Station

Model:
C20S

Input:
AC 100–240V 50/60Hz

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
1000W (Max)

Ports:
20 x USB-C

Size:
533 × 213 × 46 mm

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)
30W (11-port)
25W (14-port)
20W (17-port)
15W (20-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (11-port)
35W (14-port)
30W (16-port)
27W (18-port)
25W (20-port)

800W:
100W (8-port)
65W (12-port)
60W (13-port)
45W (17-port)
35W (20-port)

1000W:
100W (10-port)
90W (11-port)
65W (15-port)
60W (16-port)
45W (20-port)

Features:
Intelligent Power Allocation
Automatic Temperature Control
Power Switch
LED Indicators
Over Current Protection
Over Voltage Protection
Over Heating Protection
Short Circuit Protection

Mounting:
21″ rack mountable metal housing

Compatibility:
Laptop, Tablet PC, Smart Phone

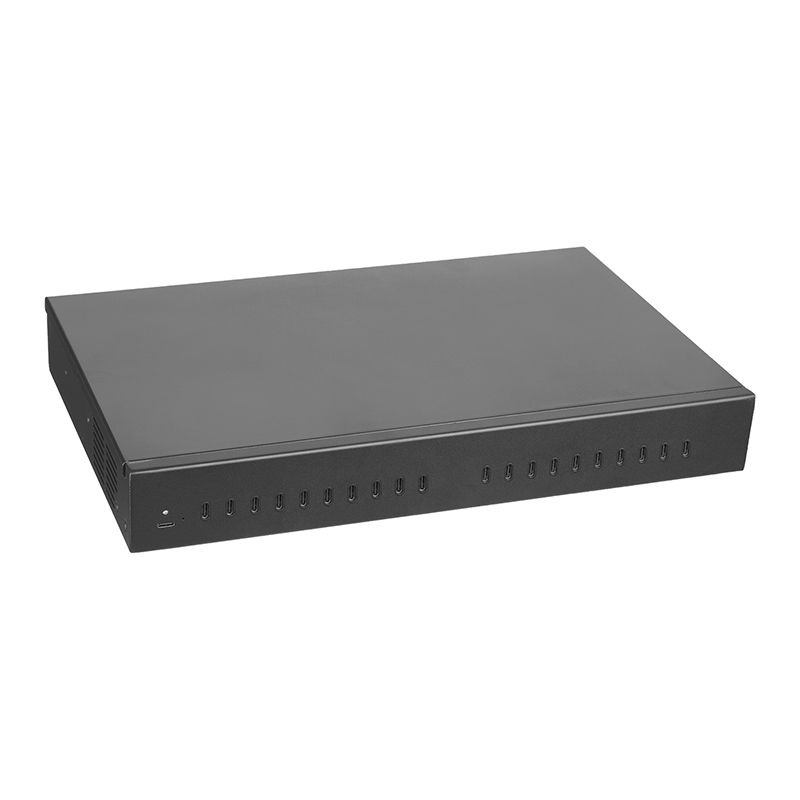

The CP20S 20-Port USB-C Charging Station is a compact and efficient solution designed for simultaneous charging of up to 20 devices, including tablets, smartphones, and VR devices. Ideal for schools, offices, and public environments, it supports centralized device management while maintaining stable and safe charging performance.

• 20-Port Charging: Charges up to 20 tablets, smartphones, or VR devices simultaneously.
• Intelligent Temperature Control: Equipped with IPA temperature control technology for safe and stable charging.
• Compact Design: Space-saving form factor for easy centralized deployment.
• Efficient Cooling System: Built-in fan and ventilation openings enhance heat dissipation.
• Flexible Installation: Can be placed on a desk or mounted depending on usage requirements.
• Optional LED Indicator: Supports external indicator light for real-time charging status monitoring.

Designed for high-capacity environments, the CP20S provides reliable performance and efficient charging management across multiple device types.

Product Name:
20-Port USB-C Charging Station

Model:
CP20S

Input:
AC 100–240V 50/60Hz

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 3.25A (PD3.0 / AVS / QC5 / PPS 5–21V 3A)

Total Power:
500W (Max)

Ports:
20 x USB-C

Size:
340 × 213 × 46 mm

Intelligent Power Allocation Specification:
500W:
65W (7-port)
60W (8-port)
45W (11-port)
35W (14-port)
30W (16-port)
27W (18-port)
25W (20-port)

Features:
IPA Temperature Control Technology
Built-in Cooling Fan
Ventilation System
Optional LED Indicator
Compact Design

Compatibility:
Tablet, Smartphone, VR Device

Accessories (Optional):
LED Panel
Rack

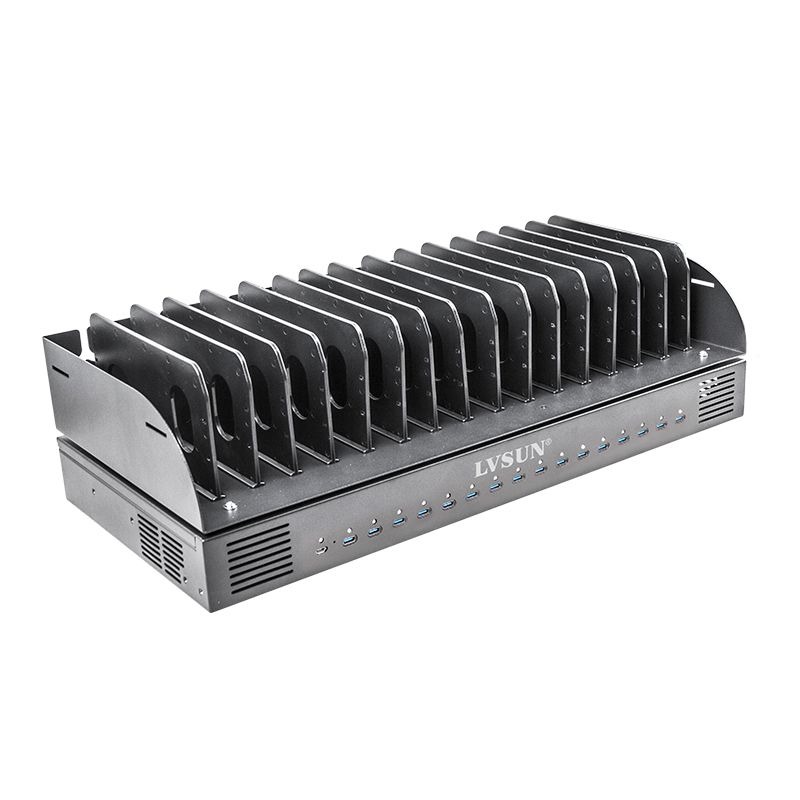

The C16S-P 16-Port USB-C Charging Station with Organizer Tray is a high-capacity charging solution designed to power and organize up to 16 devices simultaneously. With an integrated tray system, it keeps laptops and tablets neatly arranged while delivering efficient and stable charging performance.

• 16-Port Charging: Charges up to 16 laptops, tablets, or smartphones simultaneously.
• High Power Output: 1000W total power supports multiple high-demand devices.
• Organizer Tray Design: Keeps devices neatly arranged for easy access and cable management.
• App Control: Managed via innovatecharger App with timer switch for scheduled charging.
• Efficient Charging: Supports simultaneous charging of up to 10 x 100W devices or 16 x 60W devices.
• Wide Compatibility: Suitable for laptops, tablets, smartphones, and Chromebooks.
• Clean Setup: Centralized charging reduces cable clutter and improves workspace organization.
• Multi Protection: Includes over temperature, over voltage, over current, and short circuit protection.

Designed for efficient multi-device charging, the C16S-P is ideal for classrooms, offices, and shared environments requiring organized and reliable power management.

Product Name:
16-Port USB-C Charging Station with Organizer Tray

Model:
C16S-P

Input:
AC 100–240V 50/60Hz

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
1000W (Max)

Ports:
16 x USB-C

Size:
442 × 213 × 66 mm

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)
30W (11-port)
25W (14-port)
20W (16-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (11-port)
35W (14-port)
30W (16-port)

800W:
100W (8-port)
65W (12-port)
60W (13-port)
45W (16-port)

1000W:
100W (10-port)
90W (11-port)
65W (15-port)
60W (16-port)

Features:
Innovatecharger App Control
Timer Switch
Organizer Tray Design
Multi Protection System
Centralized Charging

Compatibility:
Laptop, Tablet PC, Smart Phone

Accessories (Optional):
Tray with dividers

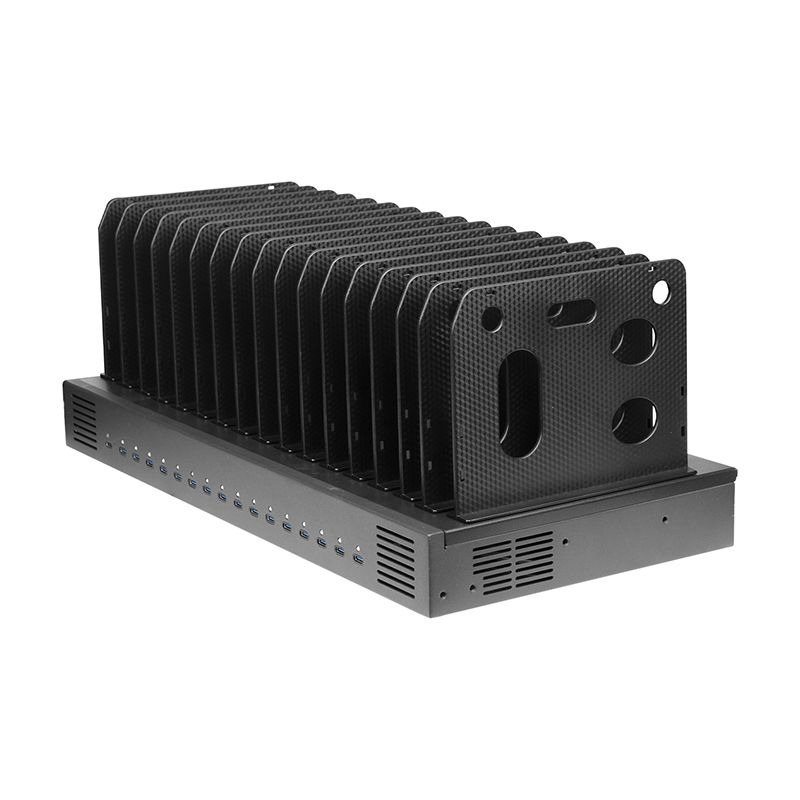

The C16S-T 16-Port USB-C Charging Dock is a high-performance charging solution designed to power and organize up to 16 devices simultaneously. Built for efficiency and convenience, it delivers stable power output while keeping devices neatly arranged in a centralized setup.

• 16-Port Charging: Charge up to 16 laptops, tablets, or smartphones at the same time.
• High Power Output: 1000W total power supports up to 10 x 100W devices or 16 x 60W devices simultaneously.
• USB-C PD Charging: Equipped with 16 independent USB-C/PD ports for efficient fast charging.
• App Control: Managed via innovatecharger App with timer switch for scheduled charging.
• Organized Setup: Centralized charging reduces cable clutter and keeps devices neatly arranged.
• Wide Compatibility: Supports laptops, tablets, smartphones, and Chromebooks.
• Efficient Cooling: Built-in heat sink design and silent fan improve heat dissipation for stable performance.
• Multi Protection: Includes over temperature, over voltage, over current, and short circuit protection.

Designed for classrooms, offices, and shared environments, the C16S-T provides reliable, high-capacity charging with efficient power management.

Product Name:
16-Port USB-C Charging Dock

Model:
C16S-T

Input:
AC 100–240V 50/60Hz

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
1000W (Max)

Ports:
16 x USB-C

Size:
442 × 213 × 46 mm (1U)

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)
30W (11-port)
25W (14-port)
20W (16-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (11-port)
35W (14-port)
30W (16-port)

800W:
100W (8-port)
65W (12-port)
60W (13-port)
45W (16-port)

1000W:
100W (10-port)
90W (11-port)
65W (15-port)
60W (16-port)

Features:
Innovatecharger App Control
Timer Switch
Built-in Silent Fan
Heat Sink Cooling Design
Multi Protection System
Centralized Charging

Compatibility:
Laptop, Tablet PC, Smart Phone

Accessories (Optional):
Dividers
Rack Mount

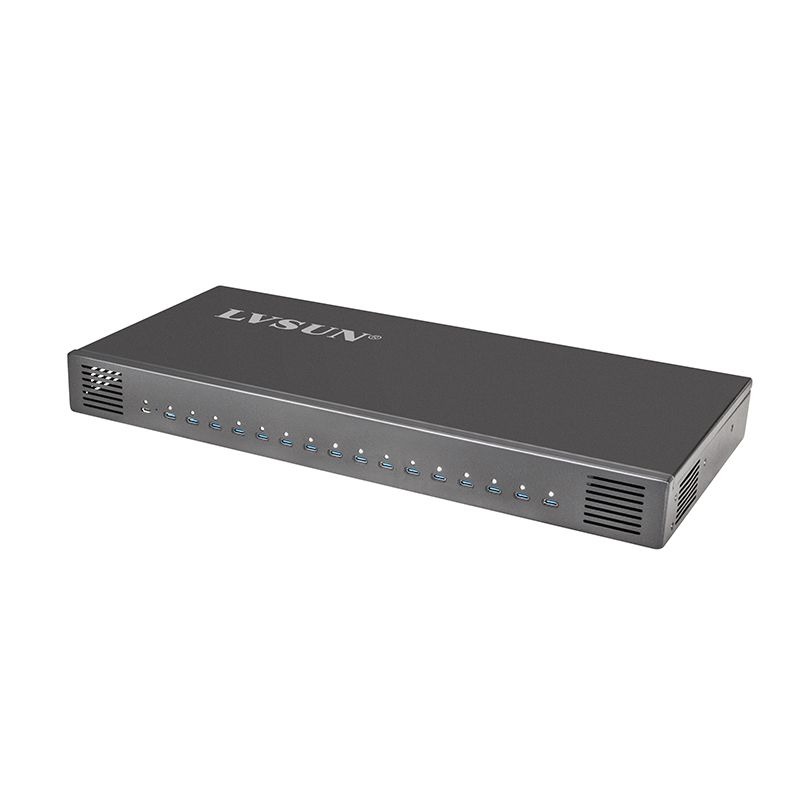

The C16S 16-Port USB-C Charging Station is a high-efficiency charging solution designed to power up to 16 devices simultaneously. With 1000W total output and intelligent power allocation, it ensures stable and optimized charging for laptops, tablets, and other USB-C devices.

• 16-Port Charging: Charge up to 16 laptops or tablets at the same time.
• High Power Output: 1000W total power supports up to 10 x 100W devices or 16 x 60W devices.
• USB-C PD Charging: Equipped with 16 independent USB-C/PD ports for efficient fast charging.
• App Control: Managed via innovatecharger App with timer switch for scheduled charging.
• Wide Compatibility: Supports laptops, tablets, and smartphones.
• Global Input: AC 100–240V input for worldwide compatibility.
• Intelligent Power Allocation: Optimizes power distribution with high efficiency.
• Multi Protection: Includes over temperature, over voltage, over current, and short circuit protection.

Designed for classrooms, offices, and IT environments, the C16S provides reliable, centralized charging with efficient power management.

Product Name:
16-Port USB-C Charging Station

Model:
C16S

Input:
AC 100–240V 50/60Hz

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
1000W (Max)

Ports:
16 x USB-C

Size:
442 × 213 × 46 mm

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)
30W (11-port)
25W (14-port)
20W (16-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (11-port)
35W (14-port)
30W (16-port)

800W:
100W (8-port)
65W (12-port)
60W (13-port)
45W (16-port)

1000W:
100W (10-port)
90W (11-port)
65W (15-port)
60W (16-port)

Features:
Innovatecharger App Control
Timer Switch
Intelligent Power Allocation
Multi Protection System
Centralized Charging

Compatibility:
Laptop, Tablet PC, Smart Phone

Accessories (Optional):
LED Panel

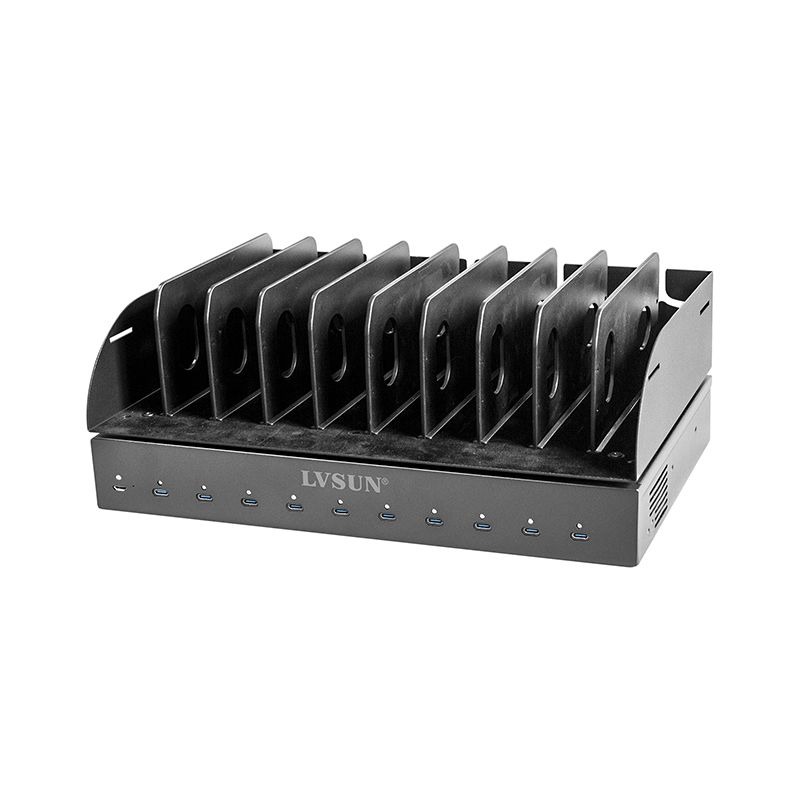

The C10S-P 10-Port USB-C Charging Dock with Tray is a compact and efficient solution for charging and organizing multiple devices simultaneously. Designed for classrooms and shared environments, it combines high-power charging with a structured tray system to keep devices neat and accessible.

• 10-Port Charging: Charge up to 10 laptops, tablets, or Chromebooks at the same time.
• High Power Output: Each port supports up to 100W for fast and efficient charging.
• USB-C Compatibility: Designed for modern USB-C devices across different power requirements.
• Organizer Tray: Keeps devices neatly arranged and reduces cable clutter.
• Optimized Spacing: 31mm slot spacing supports devices of varying thickness.
• IPA Technology: Intelligent Power Allocation ensures efficient and balanced power distribution.
• Energy Efficient: Reduces power consumption while maintaining stable charging performance.
• Multi Protection: Includes over temperature, over voltage, over current, and short circuit protection.

Ideal for K-12 environments and shared workspaces, the C10S-P provides reliable charging while maintaining a clean and organized setup.

Product Name:
10-Port USB-C Charging Dock with Tray

Model:
C10S-P

Input:
AC 100–240V 50/60Hz

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
1000W (Max)

Ports:
10 x USB-C

Size:
340 × 213 × 66 mm

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (10-port)

800W:
100W (8-port)
65W (10-port)

1000W:
100W (10-port)

Features:
Organizer Tray Design
IPA Intelligent Power Allocation
Optimized Device Spacing (31mm)
Centralized Charging
Multi Protection System

Compatibility:
Laptop, Chromebook, Tablet

Accessories (Optional):
Tray with Dividers
LED Panel

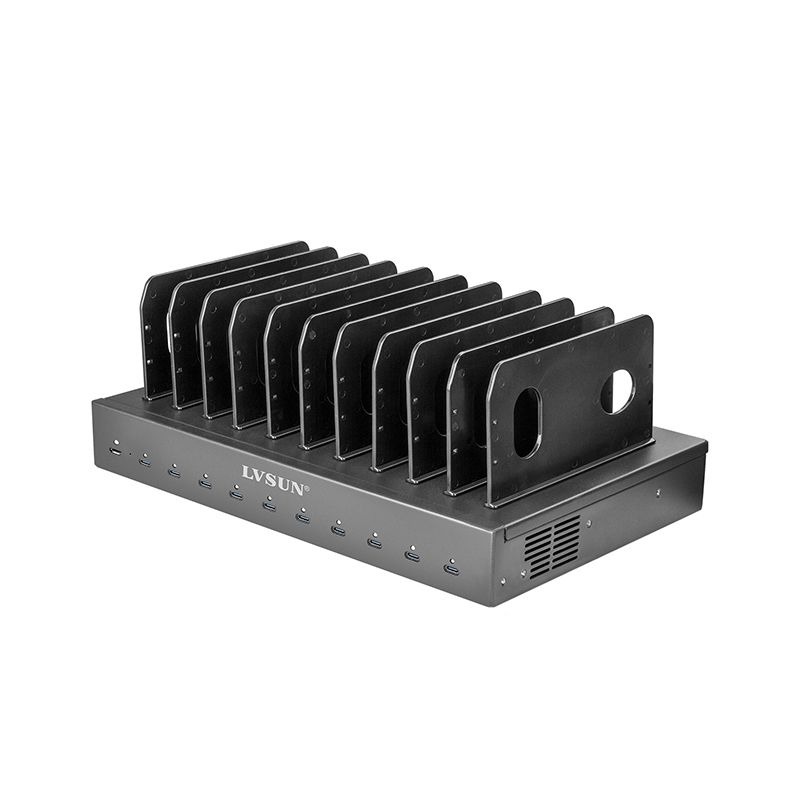

The C10S-T 10-Port USB-C Charging Station with Detachable Stands is a high-power charging solution designed to charge and organize up to 10 devices simultaneously. Built with intelligent power distribution, it automatically adjusts output based on device requirements while keeping devices neatly arranged on detachable stands.

• 10-Port Charging: Charges up to 10 laptops, tablets, or smartphones at the same time.
• 100W Per Port: Each USB-C port supports an independent output of up to 100W.
• Intelligent Power Distribution: Automatically adjusts output to match device requirements for efficient charging.
• Detachable Stands: Keeps devices neatly organized in a centralized setup.
• App Control: Managed through the innovatecharger app with multilingual support.
• Energy Saving: Scheduled charging helps reduce electricity costs.
• Cooling System: Built-in silent fan and heat sink support stable performance.
• Safety Protection: Includes overload protection, short-circuit protection, and thermal management.

Suitable for offices, schools, and shared charging environments, the C10S-T provides efficient high-capacity charging with organized device placement and intelligent power control.

Product Name:
10-Port USB-C Charging Station with Detachable Stands

Model:
C10S-T

Input:
AC 100–240V 50/60Hz

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
1000W (Max)

Ports:
10 x USB-C

Size:
340 × 213 × 46 mm (1U)

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (10-port)

800W:
100W (8-port)
65W (10-port)

1000W:
100W (10-port)

Features:
Innovatecharger App Control
Detachable Stands
AI Smart Power Distribution
Built-in Silent Fan
Heat Sink Cooling Design
Energy Saving Charging Mode

Compatibility:
Laptop, Tablet PC, Smart Phone

Accessories (Optional):
Dividers
Rack

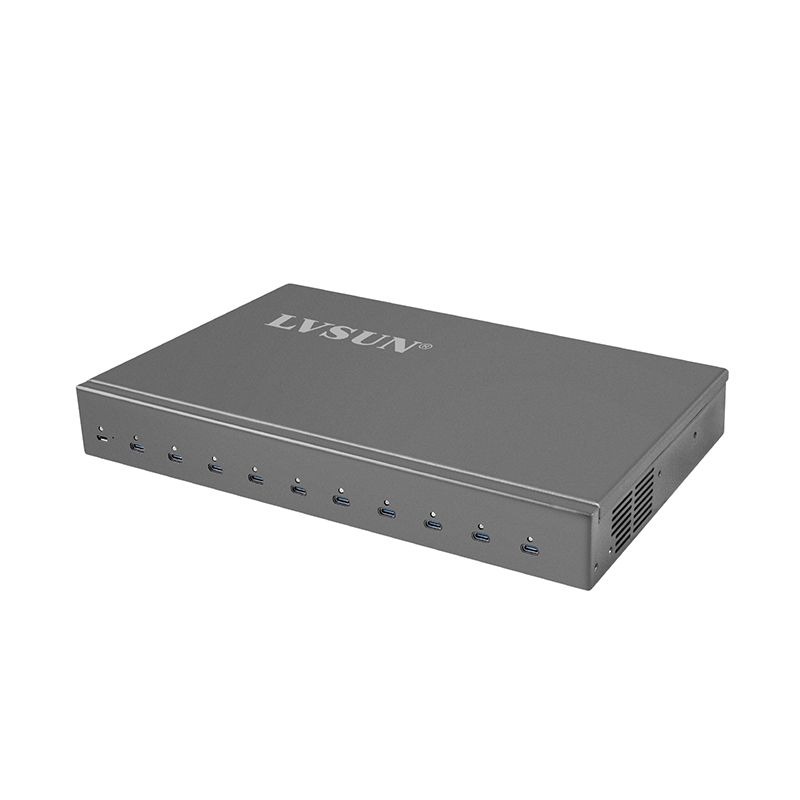

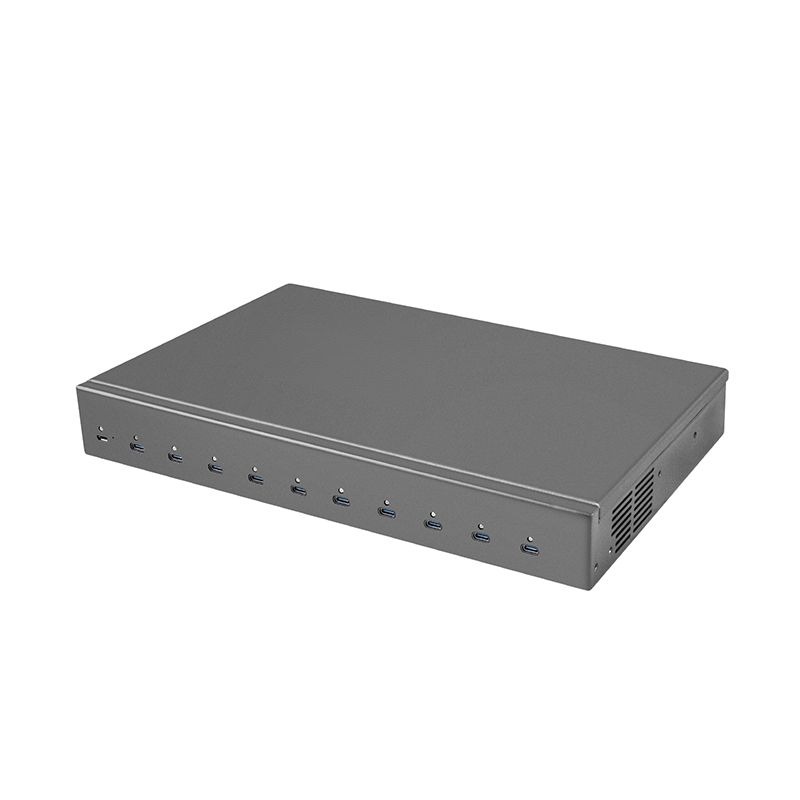

The C10S 10-Port USB-C Charging Station is a compact and efficient solution designed to power up to 10 devices simultaneously. Built with intelligent power allocation, it automatically adjusts output based on device requirements, ensuring safe and optimized charging for laptops, tablets, and smartphones.

• 10-Port Charging: Charges up to 10 laptops, tablets, or smartphones at the same time.
• 100W Per Port: Each USB-C port supports up to 100W output.
• Intelligent Power Allocation: Automatically adjusts power to match device requirements.
• LED Indicators: Red light for charging, green light when fully charged.
• Durable Metal Housing: Premium casing designed for long-term use.
• Cooling System: Built-in fan and ventilation holes for efficient heat dissipation.
• Flexible Installation: Can be used standalone or installed inside a charging cabinet.

Suitable for schools, offices, retail environments, and shared charging setups, the C10S delivers reliable high-capacity charging in a compact and durable design.

Product Name:
10-Port USB-C Charging Station

Model:
C10S

Input:
AC 100–240V 50/60Hz

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
1000W (Max)

Ports:
10 x USB-C

Size:
340 × 213 × 46 mm

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (10-port)

800W:
100W (8-port)
65W (10-port)

1000W:
100W (10-port)

Features:
IPA Intelligent Power Allocation
LED Charging Indicators
Built-in Cooling Fan
Ventilation Design
Metal Housing

Application:
Schools
Offices
Retail Environments
Government Agencies

Accessories (Optional):
LED Panel
Rack

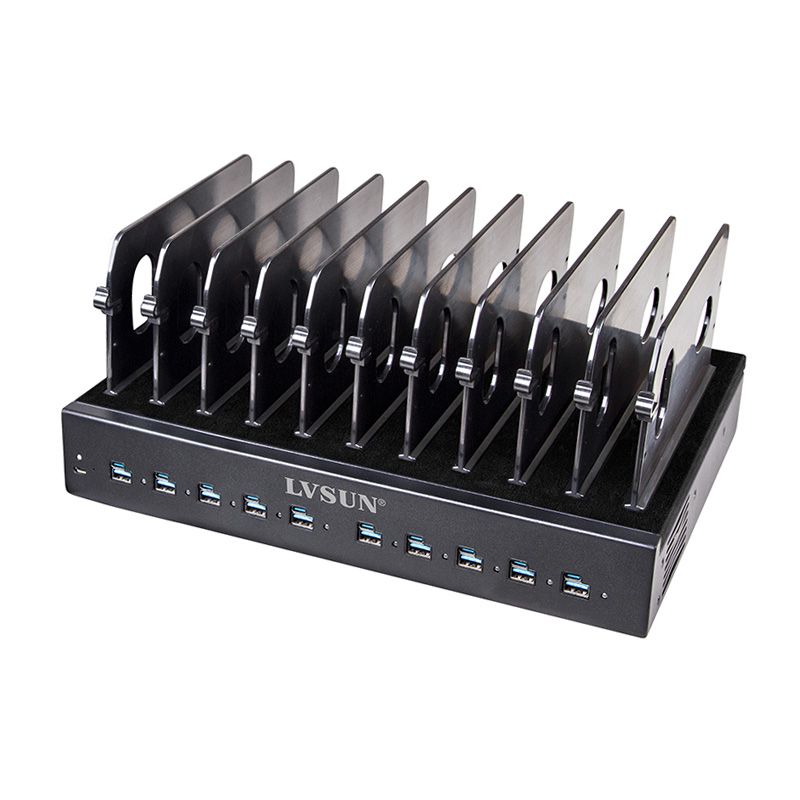

The CA10S-T 10-Port USB-C Charging Dock is a high-power charging solution designed to efficiently charge and organize multiple devices simultaneously. With a total output of 800W, it delivers reliable and fast charging for laptops, tablets, and other USB-C devices, making it ideal for classrooms, offices, and shared environments.

• 10-Port USB-C Charging: Charge up to 10 laptops or tablets simultaneously from a single dock.
• High Power Output: 800W total power ensures stable and efficient charging across all connected devices.
• Smart Power Allocation: Automatically distributes power based on device requirements for optimal performance.
• Organized Charging Setup: Integrated dividers keep devices neatly arranged and easy to manage.
• Wide Compatibility: Supports laptops, tablets, smartphones, and other USB-C devices.
• Global Voltage Support: AC 100–240V input for use in various environments.
• Advanced Cooling Design: Built with ventilation and cooling features for stable long-term operation.
• Multi Protection System: Includes over-voltage, over-current, over-temperature, and short circuit protection.

Designed for efficient device management and high-performance charging, the CA10S-T provides a reliable and centralized solution for powering multiple USB-C devices in professional and educational environments.

Product Name:
10-Port USB-C Charging Dock

Model:
CA10S-T

Input:
AC 100–240V 50/60Hz

Output:
DC 5V / 9V / 12V / 15V / 20V 5A
(PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
800W

Ports:
10 × USB-C (PD)

Charging Capacity:
Up to 10 laptops or tablets simultaneously

Size:
340 × 213 × 46 mm (1U rack size)

Form Factor:
Desktop Dock with Device Dividers

Features:
USB-C Power Delivery (PD3.0)
Intelligent Power Allocation
InnovateCharger App Control
Timer Charging Function
Energy Saving Operation
Multi Protection System (Over-voltage, Over-current, Short Circuit, Over-temperature)

Device Compatibility:
Laptops
Tablets
Smartphones
Chromebooks
USB-C Devices

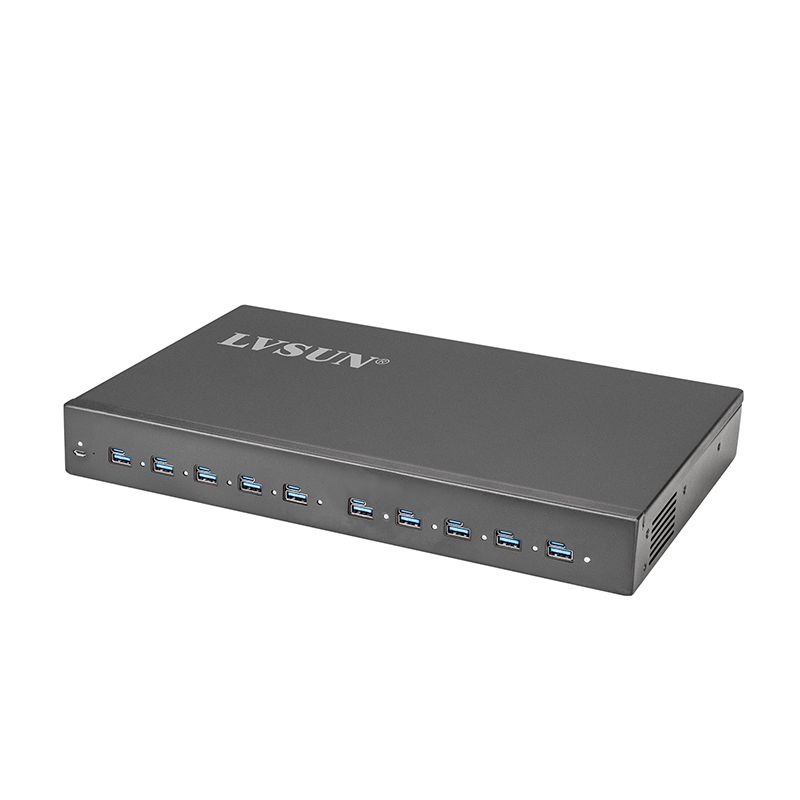

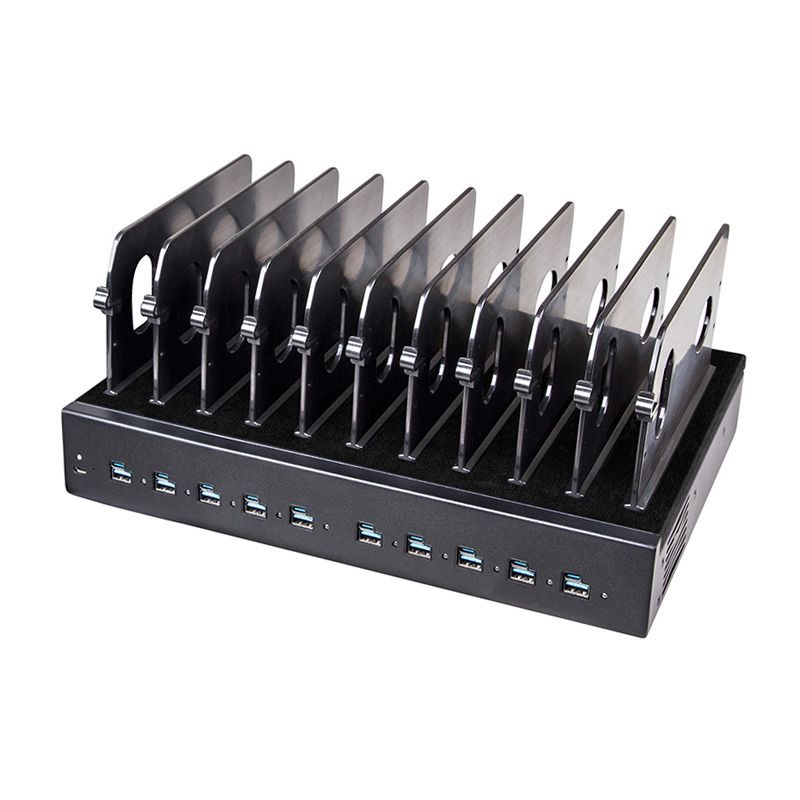

The LVSUN 10-Port Industrial USB-C or USB-A Charging Station is a high-performance solution designed to charge up to 10 devices simultaneously. With a powerful 1000W output and intelligent power allocation, it delivers efficient and reliable charging for laptops, tablets, and smartphones in professional environments.

• 10-Port Charging: Charge up to 10 devices simultaneously in one centralized location.
• 1000W Total Power: High-capacity output supports demanding multi-device charging.
• USB-C / USB-A Support: Flexible compatibility for a wide range of devices.
• Up to 100W Per Port: Supports high-power charging for laptops and other devices.
• Intelligent Power Allocation: Automatically adjusts output based on device requirements.
• App Control: Monitor and manage charging via the innovatecharger app.
• Tidy & Organized: Centralized charging reduces clutter and improves workflow.
• Cooling Design: Built-in fan and heat sink for stable operation.

Ideal for schools, offices, retail environments, and shared workspaces, the CA10S provides a reliable and organized charging solution for multiple devices.

Product Name:
10 Ports Industrial USB-C or USB-A PD Charging Station

Model:
CA10S

Input:
AC 100–240V 50/60Hz

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
1000W

Ports:
10 x USB-C or USB-A

Size:
340 × 213 × 46 mm

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (10-port)

800W:
100W (8-port)
65W (10-port)

1000W:
100W (10-port)

Features:
IPA Intelligent Power Allocation
App Control (innovatecharger)
USB-C / USB-A Compatibility
Cooling Fan & Heat Sink Design

Device Compatibility:
Laptops
Tablets
Smartphones
Other USB Devices

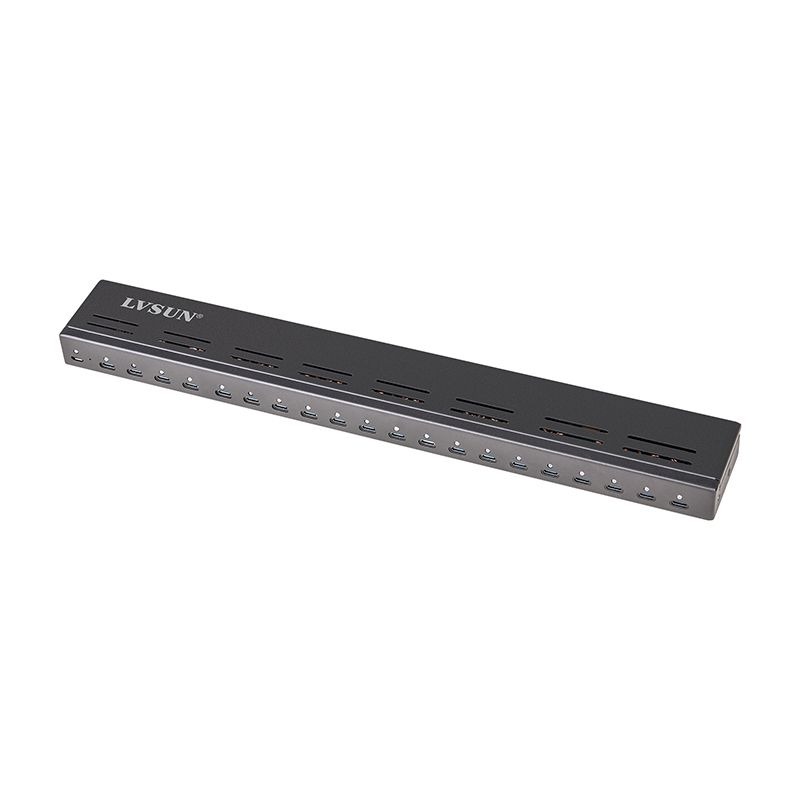

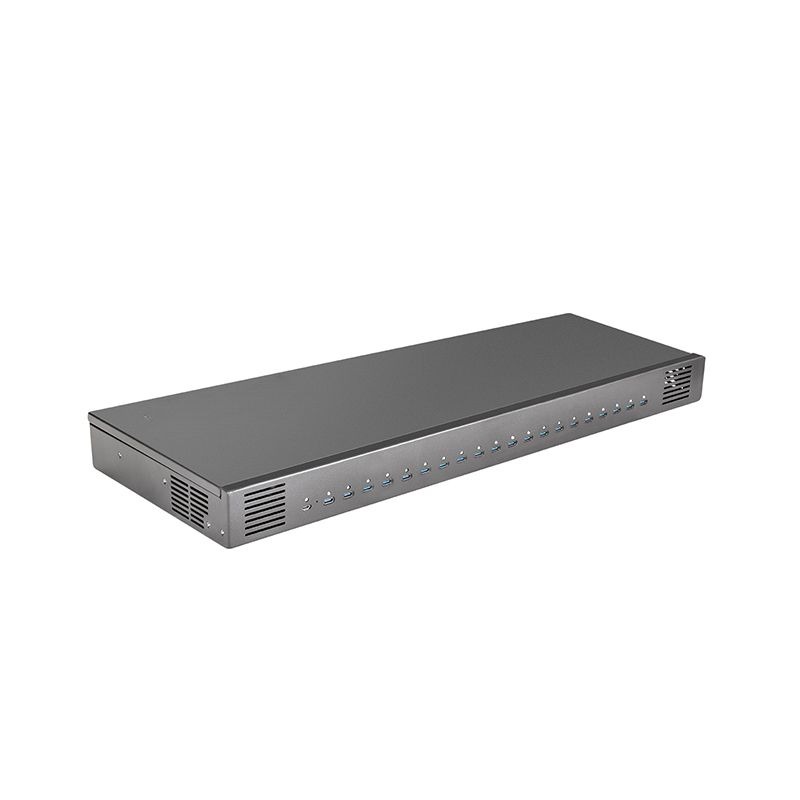

The S20S 20-Port USB-C Charging Station is a high-capacity solution designed to charge up to 20 devices simultaneously. With intelligent power allocation and a split power design, it delivers efficient and flexible charging for laptops, tablets, and smartphones across various environments.

• 20-Port Charging: Charge up to 20 devices at the same time.
• 1000W Total Power: High-capacity output for multi-device charging.
• Intelligent Power Allocation: Automatically distributes power based on connected devices.
• USB-C PD Charging: Supports up to 100W per port depending on usage.
• App Control: Manage and monitor charging via the innovatecharger app.
• Split Design: Separate power supply for flexible installation and setup.
• Wide Application: Suitable for classrooms, charging carts, offices, and industrial environments.

Designed for efficiency and scalability, the S20S provides reliable centralized charging for large device deployments.

Product Name:
20 Ports USB-C Charging Station

Model:
S20S

Input:
DC 24V

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
1000W

Ports:
20 x USB-C

Size:
414 × 58 × 26 mm

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (10-port)

800W:
100W (8-port)
65W (10-port)

1000W:
100W (10-port)
65W (15-port)
60W (16-port)
45W (20-port)

1600W:
100W (16-port)
65W (20-port)

Features:
IPA Intelligent Power Allocation
App Control (innovatecharger)
Split Power Design
USB-C Power Delivery

Device Compatibility:
Laptops
Chromebooks
Tablets
Smartphones
USB-C Devices

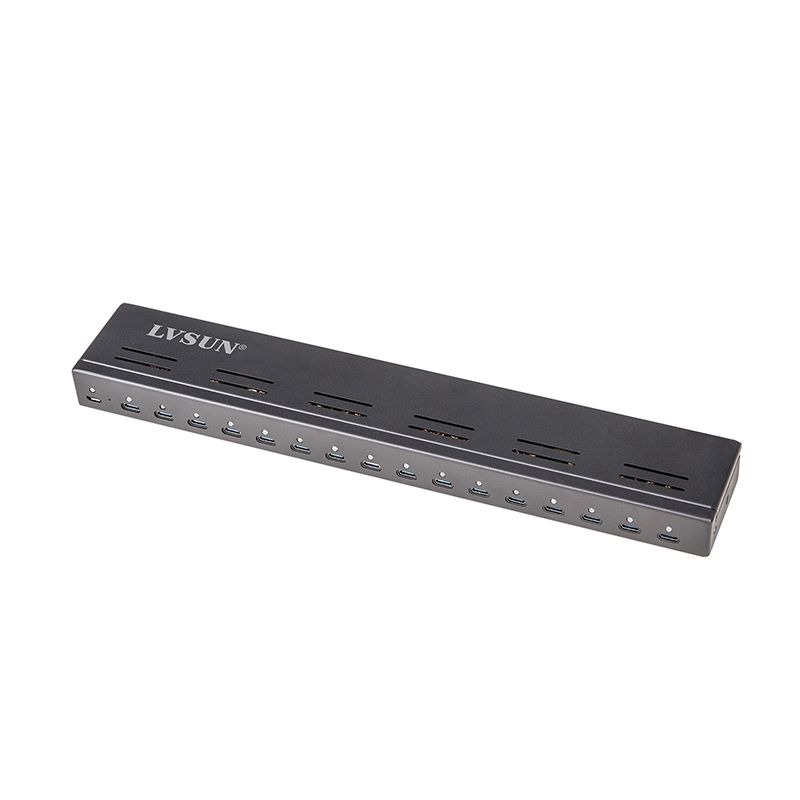

The S16S 16-Port USB-C Charging Station is a high-efficiency solution designed to power up to 16 devices simultaneously. With 1000W total output and intelligent power allocation, it delivers optimized charging performance for laptops, tablets, and smartphones in a compact form factor.

• 16-Port Charging: Charge up to 16 laptops, tablets, or smartphones at the same time.
• 1000W Total Power: Supports high-capacity multi-device charging.
• USB-C PD Charging: 16 independent USB-C/PD ports for efficient power delivery.
• Intelligent Power Allocation: Automatically distributes power based on device requirements.
• App Control: Monitor and manage charging via the innovatecharger app.
• Compact Design: Slim form factor with external 24V DC power supply for flexible deployment.
• Wide Compatibility: Supports laptops, Chromebooks, tablets, and smartphones.
• Multi Protection: Includes over temperature, over voltage, over current, and short circuit protection.

Ideal for classrooms, charging carts, offices, and shared environments, the S16S provides reliable and centralized charging for multiple devices.

Product Name:
16 Ports USB-C Charging Station

Model:
S16S

Input:
DC 24V

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
1000W

Ports:
16 x USB-C

Size:
337 × 58 × 26 mm

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)
30W (11-port)
25W (14-port)
20W (16-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (11-port)
35W (14-port)
30W (16-port)

800W:
100W (8-port)
65W (12-port)
60W (13-port)
45W (16-port)

1000W:
100W (10-port)
90W (11-port)
65W (15-port)
60W (16-port)

Features:
IPA Intelligent Power Allocation
App Control (innovatecharger)
USB-C Power Delivery
Compact Industrial Design
Multi Protection System

Device Compatibility:
Laptops
Chromebooks
Tablets
Smartphones
USB-C Devices

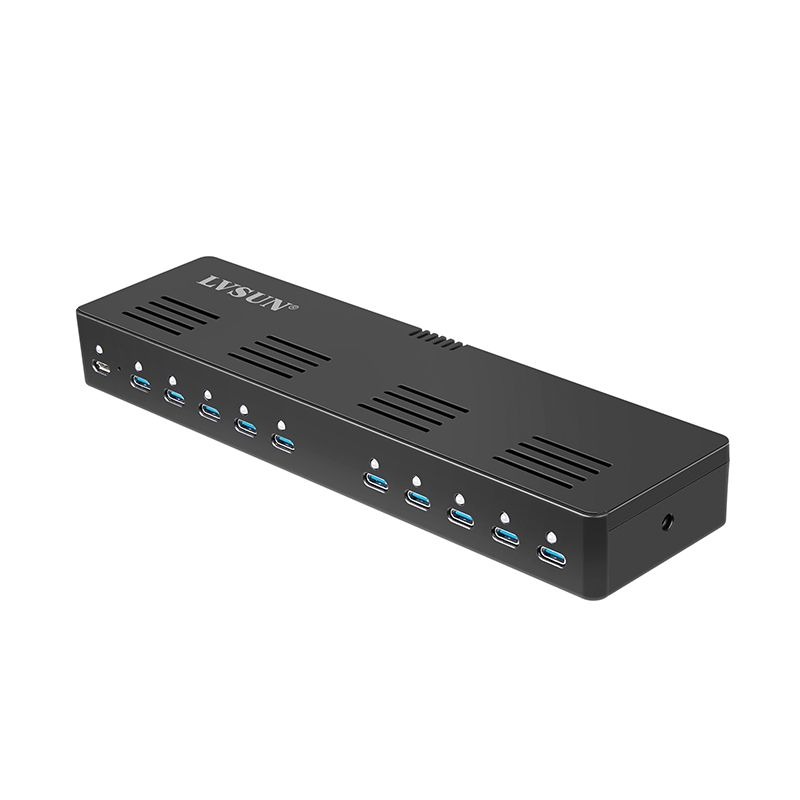

The S10S 10-Port USB-C Charging Station is a compact and powerful solution designed to charge up to 10 devices simultaneously. With 800W total output and intelligent power allocation, it ensures efficient and stable charging performance for laptops, tablets, and smartphones.

• 10-Port Charging: Power up to 10 laptops, tablets, or smartphones at the same time.
• 800W Total Power: Supports high-efficiency multi-device charging.
• USB-C PD Charging: 10 independent USB-C/PD ports for optimized power delivery.
• Intelligent Power Allocation: Automatically distributes power based on device requirements.
• App Control: Monitor and manage charging via the innovatecharger app.
• Compact Design: Slim form factor with external 24V DC power supply for flexible installation.
• Wide Compatibility: Supports laptops, Chromebooks, tablets, and smartphones.
• Multi Protection: Includes over temperature, over voltage, over current, and short circuit protection.

Ideal for classrooms, charging carts, offices, and shared environments, the S10S provides a reliable and centralized charging solution for multiple devices.

Product Name:
10 Ports USB-C Charging Station

Model:
S10S

Input:
DC 24V

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
800W

Ports:
10 x USB-C

Size:
226 × 61 × 26 mm

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (10-port)

800W:
100W (8-port)
65W (10-port)

1000W:
100W (10-port)

Features:
IPA Intelligent Power Allocation
App Control (innovatecharger)
USB-C Power Delivery
Compact Industrial Design
Multi Protection System

Device Compatibility:
Laptops
Chromebooks
Tablets
Smartphones
USB-C Devices

The S10S-48 10-Port USB-C DC Charging Station is a high-performance charging solution designed for seamless integration into smart systems and industrial environments. With 48V DC input and a powerful 1000W output, it enables efficient, centralized charging for up to 10 devices simultaneously.

• 10-Port USB-C Charging: Charge up to 10 laptops, tablets, or smartphones at the same time.
• 1000W Total Power: Delivers up to 100W per port for fast and efficient charging.
• 48V DC Input: Designed for flexible integration into various DC power systems.
• Intelligent Power Allocation: Automatically distributes power based on device requirements.
• App Control: Monitor and manage charging remotely via the innovatecharger app.
• Optimized Cooling Design: Engineered for efficient heat dissipation and stable operation.
• Wide Compatibility: Supports laptops, tablets, smartphones, and other USB-C devices.
• Industrial Integration Ready: Ideal for smart furniture, control systems, and centralized power setups.

Perfect for smart homes, offices, industrial automation, and integrated charging systems, the S10S-48 offers a reliable and scalable charging solution with advanced power management capabilities.

Product Name:
10 USB-C DC Charging Station with 48V Input

Model:
S10S-48

Input:
DC 48V

Output:
DC5V / 9V / 12V / 15V / 3A / 20V / 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
1000W

Ports:
10 x USB-C

Size:
335 × 58 × 32 mm

Intelligent Power Allocation Specification:
350W:
100W (3-port)
65W (5-port)
45W (7-port)
35W (10-port)

500W:
100W (5-port)
65W (7-port)
60W (8-port)
45W (10-port)

800W:
100W (8-port)
65W (10-port)

1000W:
100W (10-port)

Features:
48V DC Input Design
IPA Intelligent Power Allocation
App Remote Control (innovatecharger)
High Efficiency Cooling Design
Industrial Integration Ready
Multi Protection System

Device Compatibility:
Laptops
Chromebooks
Tablets
Smartphones
USB-C Devices

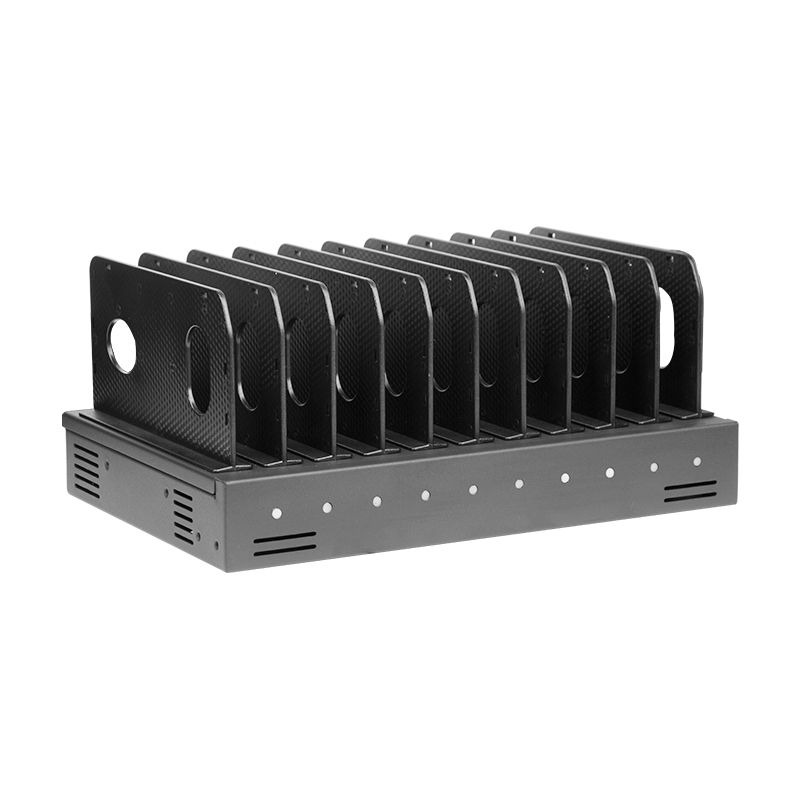

The EC10 10-Port USB-C Charging Dock is a compact and efficient solution designed for charging multiple devices simultaneously. With a total power output of 250W, it provides reliable and economical charging for smartphones, tablets, and other USB-C devices across various environments.

• 10-Port USB-C Charging: Charge up to 10 tablets or smartphones at the same time.
• 250W Total Power: Efficient and cost-effective multi-device charging.
• LED Status Indicators: Red light indicates charging, green light indicates fully charged.
• Compact & Portable Design: Ideal for classrooms, offices, homes, and events.
• Durable Metal Housing: Built with multi-vent cooling design for improved heat dissipation.
• Wide Compatibility: Supports smartphones, tablets, VR devices, and other USB-C devices.
• Global Power Support: Compatible with worldwide voltage standards.
• Multi Protection System: Includes over voltage, over current, and short circuit protection.

Perfect for educational environments, offices, and shared spaces, the EC10 offers a simple and centralized charging solution with reliable performance and safe operation.

Product Name:
250W 10 Ports USB-C Charging Dock

Model:
EC10

Input:
AC 100–240V 3A 50/60Hz

Output:
DC 5–20V 5A (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power:
250W

Ports:
10 x USB-C

Color:
Black

Size:
286 × 190 × 43 mm

Features:
USB-C Power Delivery (PD3.0)
LED Charging Indicators
Multi-Vent Cooling Design
Portable Charging Dock Design
Global Voltage Compatibility
Multi Protection System

Device Compatibility:
Smartphones
Tablets
iPads
VR Devices
USB-C Devices

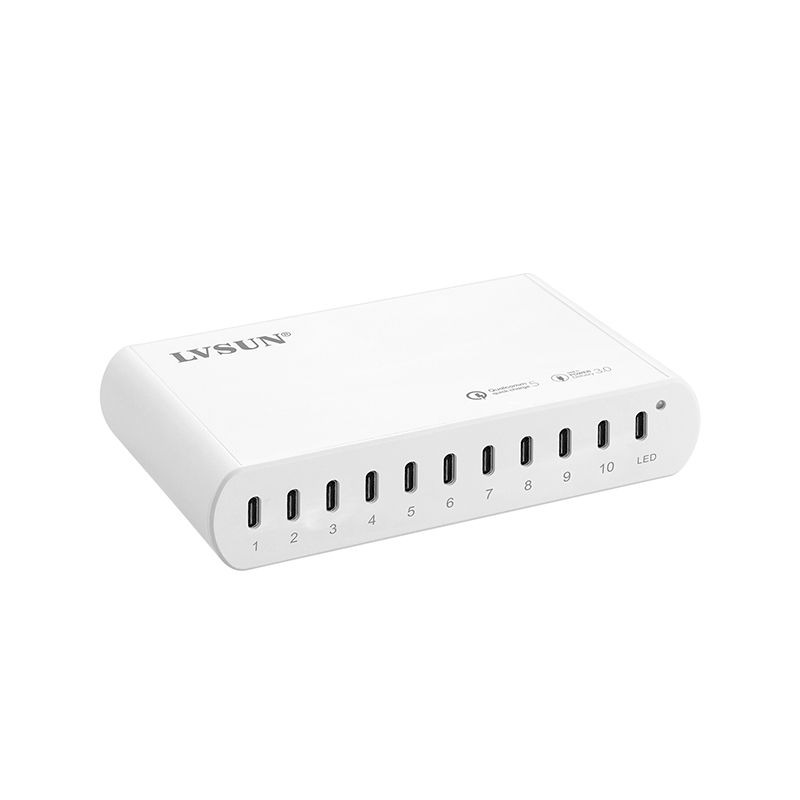

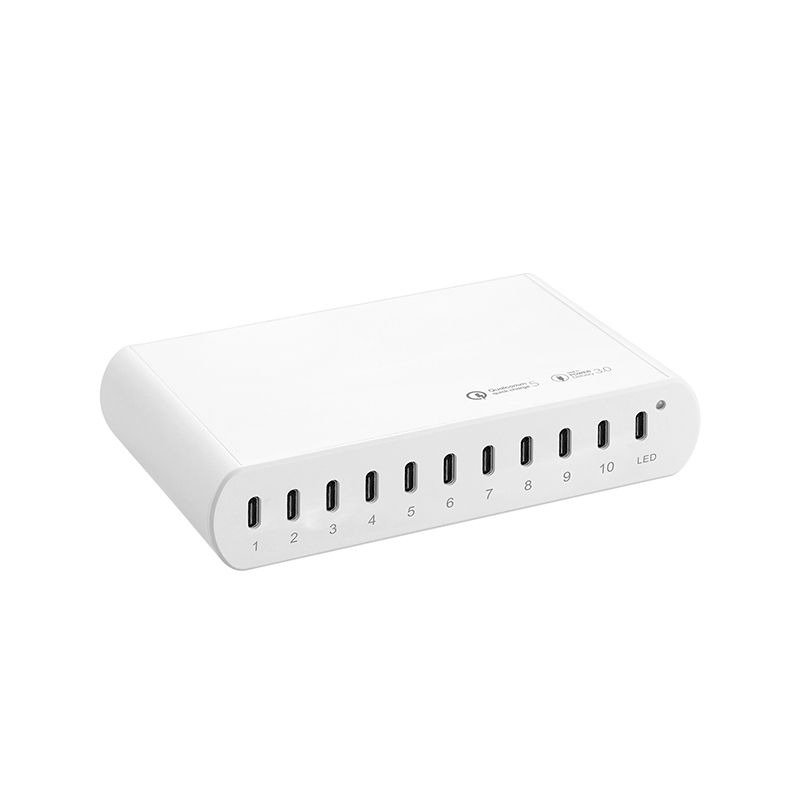

The PC10 10-Port USB-C Charging Station is a compact and versatile charging solution designed to power multiple devices simultaneously. Available in multiple power configurations (120W, 150W, and 250W), it allows you to choose the right capacity based on your usage needs.

• 10-Port USB-C Charging: Charge up to 10 tablets, smartphones, or USB-C devices at the same time.
• Multiple Power Options: Available in 120W, 150W, and 250W configurations to suit different environments.
• Smart Power Identification: Automatically adjusts output to match connected devices.
• Efficient Charging Performance: Ensures stable and reliable power delivery across all ports.
• Compact & Space-Saving Design: Ideal for desktops, classrooms, offices, and shared workspaces.
• Enhanced Cooling Design: Built for better heat dissipation and long-term operation.
• Wide Compatibility: Supports tablets, smartphones, laptops, and other USB-C devices.
• Advanced Protection: Includes over temperature, over voltage, over current, and short circuit protection.

Whether for home, office, or educational use, the PC10 provides a reliable and centralized charging solution with flexible power options to match your needs.

Product Name:
10-Port USB-C Charging Station

Models Available:
PC10-120E (No LED Function)
PC10-120
PC10-150
PC10-250

Input:
AC 100–240V 50/60Hz

Output:
DC 5–20V (PD3.0 / AVS / QC5 / PPS 5–21V 5A) (Max)

Total Power (by Model):
PC10-120E: 120W
PC10-120: 120W
PC10-150: 150W
PC10-250: 250W

Ports:
10 x USB-C

Size:
152 × 94 × 31 mm

Weight:
120W Models: 550g
150W Model: 660g
250W Model: 780g

Features:
Multiple Power Options (120W / 150W / 250W)
USB-C Power Delivery (PD3.0)
Smart Power Identification
Efficient Heat Dissipation Design
Compact Desktop Charging Station
Multi Protection System

Device Compatibility:
Tablets
Smartphones
Laptops
VR Devices
USB-C Devices

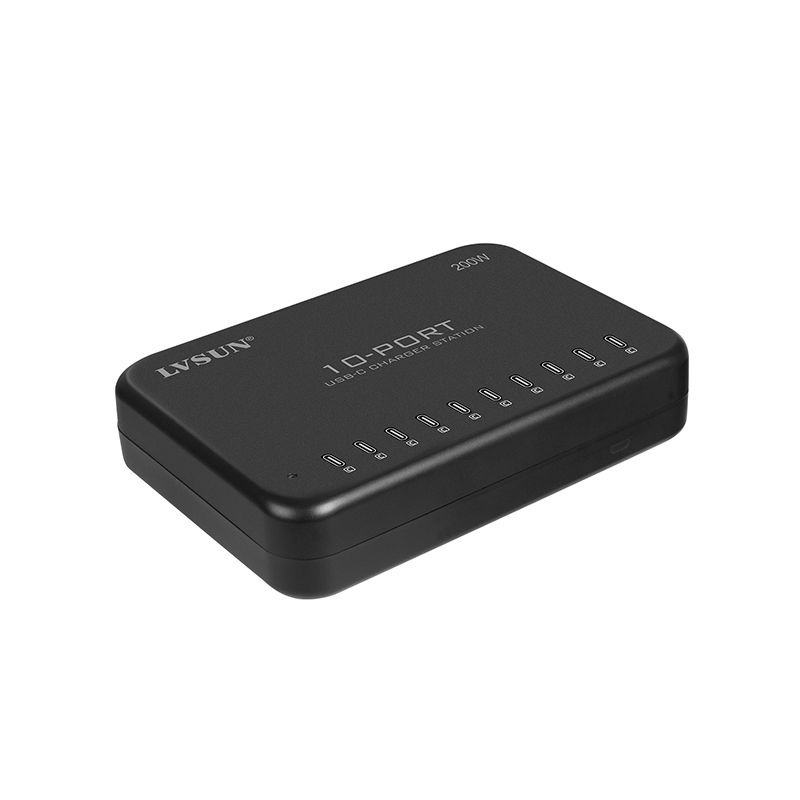

The LS-10U24C Series 10-Port USB-C Charging Station is a compact and efficient multi-device charger designed to power multiple devices simultaneously. Available in multiple power configurations (120W, 150W, and 200W), it allows you to select the ideal model based on your charging requirements.

• 10-Port USB-C Charging: Charge up to 10 tablets, smartphones, or USB-C devices at the same time.
• Multiple Power Variants: Available in 120W, 150W, and 200W models to suit different usage needs.
• Smart Power Distribution: Automatically adjusts output to match connected devices for safe and efficient charging.
• Fast Charging Performance: Supports PD charging for reliable and stable power delivery.
• Compact & Space-Saving Design: Ideal for desktops, offices, classrooms, and shared environments.
• Global Compatibility: AC 100–240V input with multiple international plug options available.
• Durable Build Quality: Constructed with high-quality ABS + PC materials for long-term use.
• Comprehensive Protection: Includes over-current, over-voltage, over-temperature, and short circuit protection.

Suitable for home, office, retail, and educational environments, the LS-10U24C Series provides a reliable and centralized charging solution for multiple USB-C devices.

Product Name:
10-Port USB-C Charging Station

Models Available:
LS-10U24C-200
LS-10U24C-150
LS-10U24H

Input:
LS-10U24C-200: AC 100–240V 3A 50/60Hz
LS-10U24C-150: AC 100–240V 2.2A 50/60Hz
LS-10U24H: AC 100–240V 1.68A 50/60Hz

Output:
LS-10U24C-200: DC 5V/9V/12V/15V (PD Charging)
LS-10U24C-150: DC 5V/9V/12V/15V (PD Charging)
LS-10U24H: DC 5V 2.4A × 10

Total Power (by Model):
LS-10U24C-200: 200W (Max)
LS-10U24C-150: 150W (Max)
LS-10U24H: 120W (Max)

Ports:
10 x USB-C (LS-10U24C-200 / 150)
10 x USB-A (LS-10U24H)

Size:
156 × 109 × 33 mm

Weight:
LS-10U24C-200: 739g
LS-10U24C-150: 650g
LS-10U24H: 465g

Features:
Multiple Power Options (120W / 150W / 200W)
USB-C Power Delivery (PD Charging)
Compact Multi-Port Charging Design
Efficient Heat Dissation Design
Global Voltage Compatibility
Multi Protection System

Device Compatibility:
Tablets
Smartphones
Laptops
Bluetooth Devices
USB Devices
