LVSUN MS Series USB-C Charging Cabinets & Carts
Charging Carts and Cabinets in Singapore
AV-Logic provides smart charging carts and charging cabinets in Singapore for schools, offices, and commercial environments. Our solutions support laptops, Chromebooks, tablets, and mobile devices with secure storage and efficient USB-C charging.

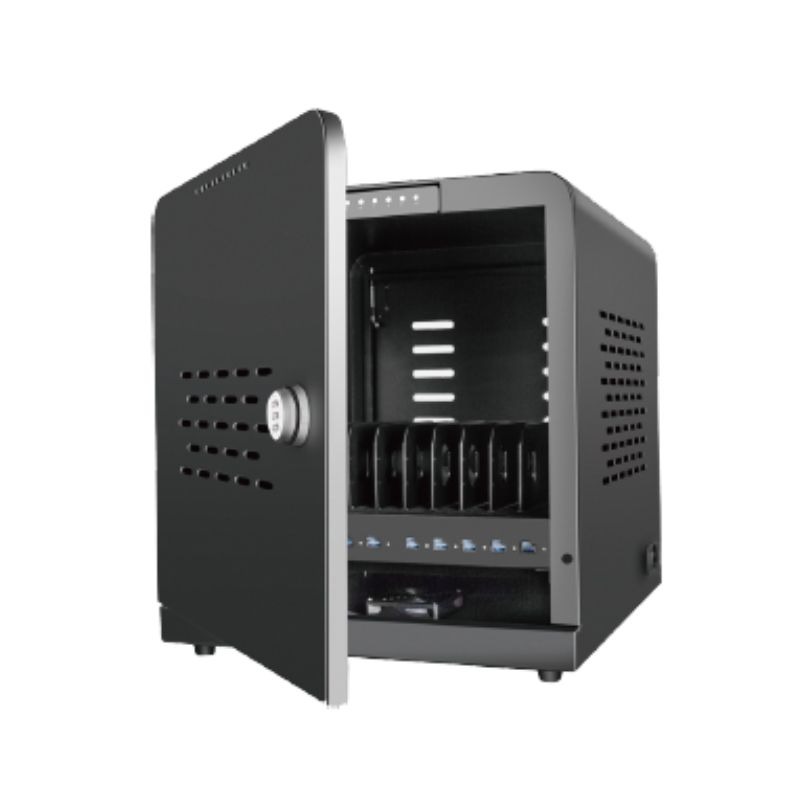

10 Ports USB-C Charging Cabinet
Model LS-MS10T
Model: LS-MS10T-350
Input:
AC 100-240V 4A 50/60Hz
USB-C Output:
DC 5V / 9V / 12V / 2.5A / 15V2A / 20V1.5A (PD3.0/QC5 Max)
10-Port Power:
30W × 10
Total Power:
350W (Max)
Size:
396 × 400 × 405 mm
Model: LS-MS10T-500
Input:
AC 100-240V 6A 50/60Hz
USB-C Output:
DC5V / 9V / 12V / 15V3A / 20V2.25A (PD3.0/QC5 Max)
10-Port Power:
45W × 10
Total Power:
500W (Max)
Size:
396 × 400 × 405 mm
Model: LS-MS10T-800
Input:
AC 100-240V 10A 50/60Hz
USB-C Output:
DC5V / 9V / 12V / 15V3A / 20V5A (PD3.0/QC5 Max)
10-Port Power:
65W × 10
Total Power:
800W (Max)
Size:
396 × 400 × 405 mm
Model: LS-MS10T-1000
Input:
AC 100-240V 12A 50/60Hz
USB-C Output:
DC5V / 9V / 12V / 15V3A / 20V5A (PD3.0/QC5 Max)
10-Port Power:
100W × 10
Total Power:
1000W (Max)
Size:
396 × 400 × 405 mm

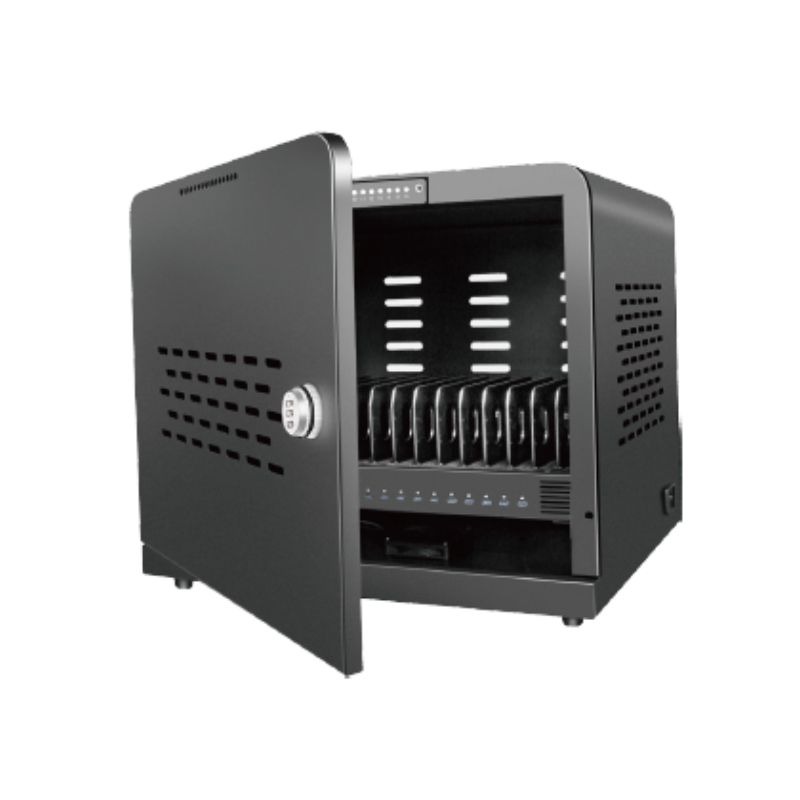

16 Port USB-C Charging Cabinet
Model LS-MS16T
Model: LS-MS16T-500
Input:
AC 100-240V 6A 50/60Hz
USB-C Output:
DC5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.5A (PD3.0/QC5 Max)
16-Port Power:
30W × 16
Total Power:
500W (Max)
Size:
498 × 400 × 405 mm
Model: LS-MS16T-800
Input:
AC 100-240V 10A 50/60Hz
USB-C Output:
DC5V / 9V / 12V / 15V3A / 20V5A (PD3.0/QC5 Max)
16-Port Power:
45W × 16
Total Power:
800W (Max)
Size:
498 × 400 × 405 mm
Model: LS-MS16T-1000
Input:
AC 100-240V 12A 50/60Hz
USB-C Output:
DC5V / 9V / 12V / 15V3A / 20V5A (PD3.0/QC5 Max)
16-Port Power:
60W × 16
Total Power:
1000W (Max)
Size:
498 × 400 × 405 mm

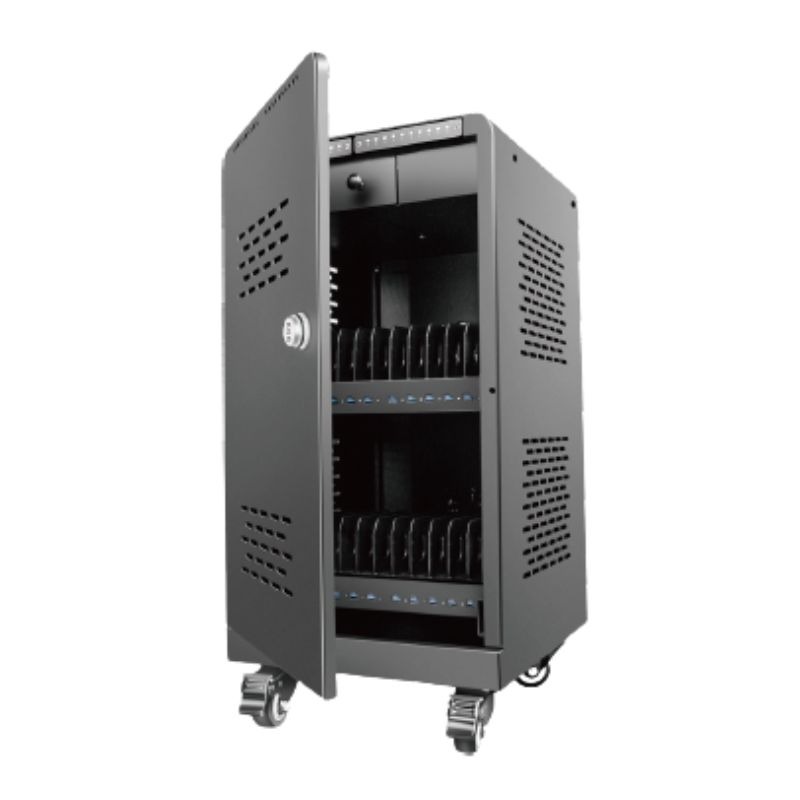

20 Ports Charging Cart
Model LS-MS20T
Model: LS-MS20T-700
Input:
AC 100-240V 4A 50/60Hz
USB-C Output:
DC 5V / 9V / 12V / 2.5A / 15V2A / 20V1.5A (PD3.0/QC5 Max)
20-Port Power:
30W × 20
Total Power:
700W (Max)
Size:
408 × 420 × 881 mm
Model: LS-MS20T-1000
Input:
AC 100-240V 6A 50/60Hz
USB-C Output:
DC5V / 9V / 12V / 15V3A / 20V2.25A (PD3.0/QC5 Max)
20-Port Power:
45W × 20
Total Power:
1000W (Max)
Size:
408 × 420 × 881 mm
Model: LS-MS20T-1600
Input:
AC 100-240V 9A 50/60Hz
USB-C Output:
DC5V / 9V / 12V / 15V3A / 20V5A (PD3.0/QC5 Max)
20-Port Power:
65W × 20
Total Power:
1600W (Max)
Size:
408 × 420 × 881 mm
Model: LS-MS20T-2000
Input:
AC 100-240V 12A 50/60Hz
USB-C Output:
DC5V / 9V / 12V / 15V3A / 20V5A (PD3.0/QC5 Max)
20-Port Power:
100W × 20
Total Power:
2000W (Max)
Size:
408 × 420 × 881 mm

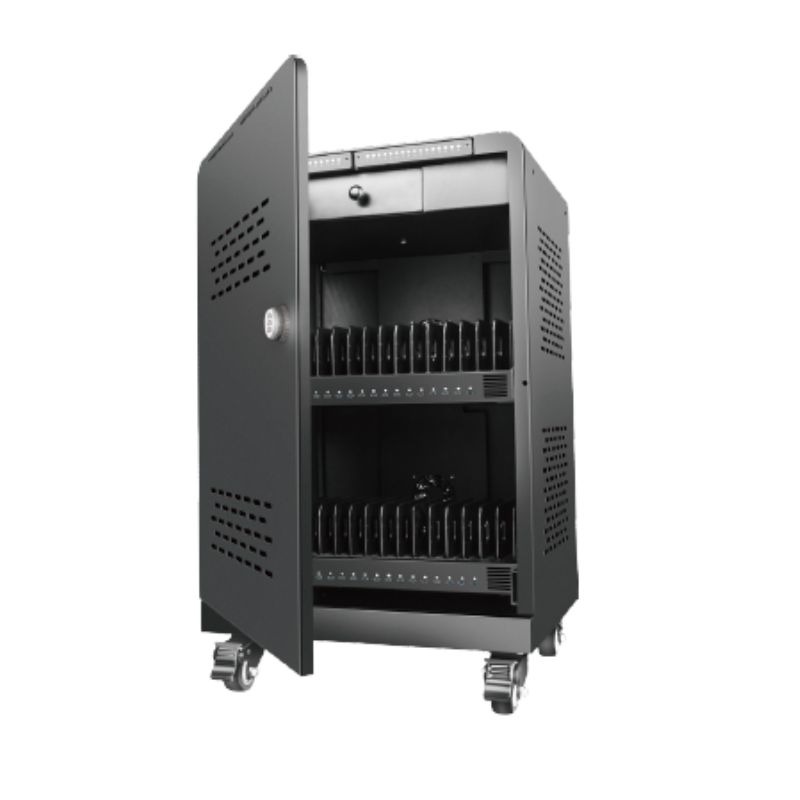

32 Ports Charging Cart
Model LS-MS32T
Model: LS-MS32T-1000
Input:
AC 100-240V 6A 50/60Hz
USB-C Output:
DC5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.5A (PD3.0/QC5 Max)
32-Port Power:
30W × 32
Total Power:
1000W (Max)
Size:
510 × 420 × 881 mm
Model: LS-MS32T-1600
Input:
AC 100-240V 10A 50/60Hz
USB-C Output:
DC5V / 9V / 12V / 15V3A / 20V5A (PD3.0/QC5 Max)
32-Port Power:
45W × 32
Total Power:
1600W (Max)
Size:
510 × 420 × 881 mm
Model: LS-MS32T-2000
Input:
AC 100-240V 12A 50/60Hz
USB-C Output:
DC5V / 9V / 12V / 15V3A / 20V5A (PD3.0/QC5)
32-Port Power:
60W × 32
Total Power:
2000W (Max)
Size:
510 × 420 × 881 mm
Practical Features
The cabinet includes practical features such as LED indicators for status monitoring, combination locks for secure access, and a power switch for convenient control.
Ventilation System
Vented side panels improve airflow inside the cabinet, helping to reduce heat build-up and maintain stable charging performance.
Durable Cabinet Construction
The cabinet features a durable metal structure designed for long-term use and secure storage. Internal separators help protect devices during storage and charging.
Side Hooks for Storage
Side hooks provide convenient storage for cables or accessories, helping keep the setup tidy and easily accessible.
Key Features
- Multi-Device Charging: Charge multiple laptops, Chromebooks, tablets, and smartphones simultaneously.
- USB-C Fast Charging: High-power USB-C charging for efficient and reliable performance.
- Flexible Capacity Options: Available in 10-port, 16-port, 20-port, and 32-port configurations.
- High Power Output: Models range from 350W up to 2000W total power.
- Space-Saving Design: Keeps devices organised while minimising footprint.
- Mobile Design: Cart models include wheels for easy movement.
Compatibility & Technology
Supports a wide range of devices and advanced charging technologies for reliable performance across different platforms.
- Device Support: Laptops, tablets, and smartphones.
- Operating Systems: Windows, macOS, ChromeOS, iPadOS, Android.
- Fast Charging: USB-C Power Delivery (PD 3.0) and Qualcomm Quick Charge.
- Intelligent Power Allocation: Efficient power distribution across devices.
Intelligent Charging with App Control
The LVSUN MS Series features an advanced app-based smart charging system for easy monitoring and control. Optimise power usage, improve efficiency, and enhance device safety.
- App Control: Monitor and manage charging remotely.
- Timer Switch: Schedule charging cycles to save energy.
- Energy Saving: Reduce electricity usage with smart control.
- Smart Power Management: Automatically distributes power efficiently.
